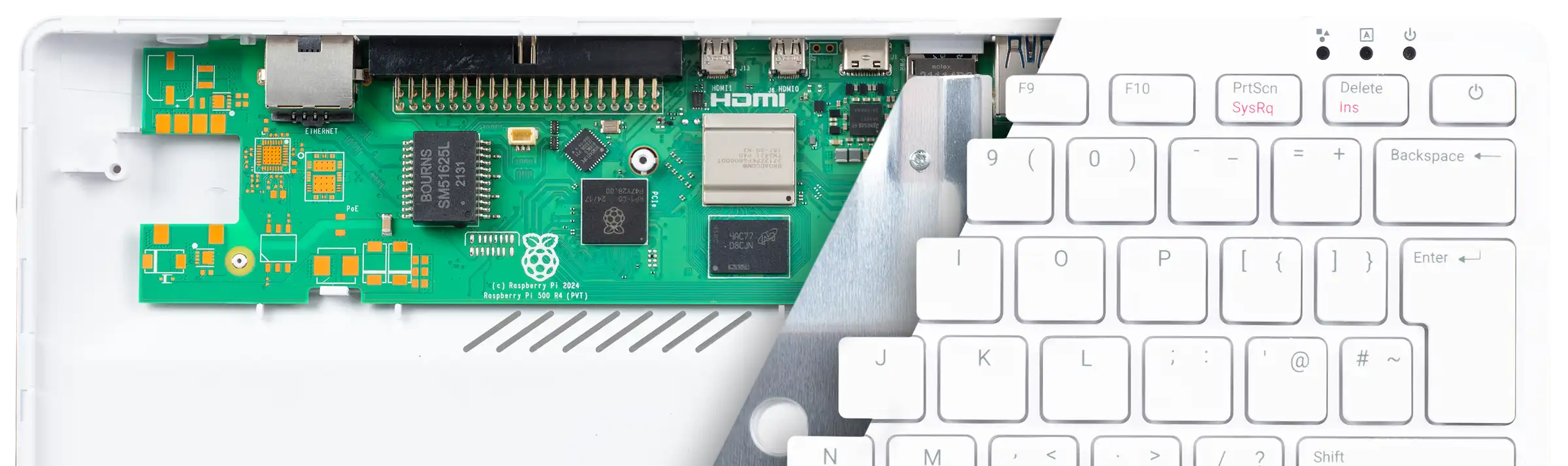

Raspberry Pi 500 Disassembled

Raspberry Pi 500

The Raspberry Pi 500 is a compact and powerful all-in-one computer that integrates the Raspberry Pi 5 SoC into a keyboard form factor. Designed for ease of use and portability, the Raspberry Pi 500 is ideal for educational purposes, programming, and general computing tasks.

Specifications

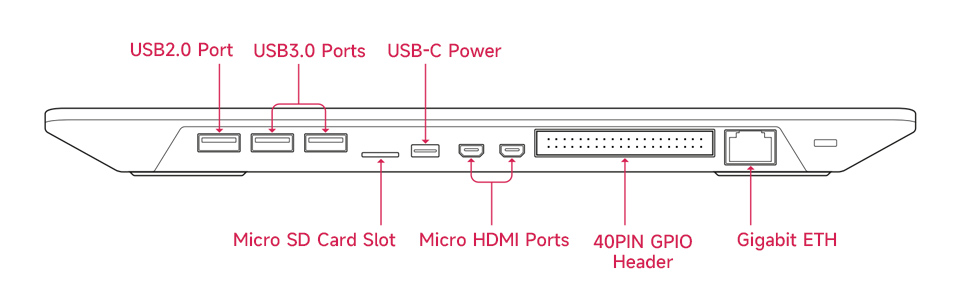

Raspberry Pi 500 Diagram
  • Compute: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
    • 512KB/core L2 cache
    • 2MB shared L3 cache
    • plus cryptography extensions
  • Memory: 8GB LPDDR4X-4267 SDRAM
  • Wi-Fi: Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®
  • Bluetooth: 5.0, BLE
  • LAN: Gigabit Ethernet
  • USB: 2 × USB 3.0 port and 1 × USB 2.0 port
  • GPIO: Horizontal 40-pin GPIO header
  • HDMI: 2 × micro HDMI® port (supports up to 4Kp60)
  • Video: H.265 (4Kp60 decode)
  • Graphics: OpenGL ES 3.1 graphics, Vulkan 1.3
  • Keyboard: 78-, 79- or 83-key compact keyboard (depending on regional variant)
  • Power: 5V/4A DC via USB connector
  • Storage: 32GB Class A2 microSD included
    • microSD card slot for operating system and data storage
Raspberry Pi 500 Box
